TRI-AXLE Lowbed

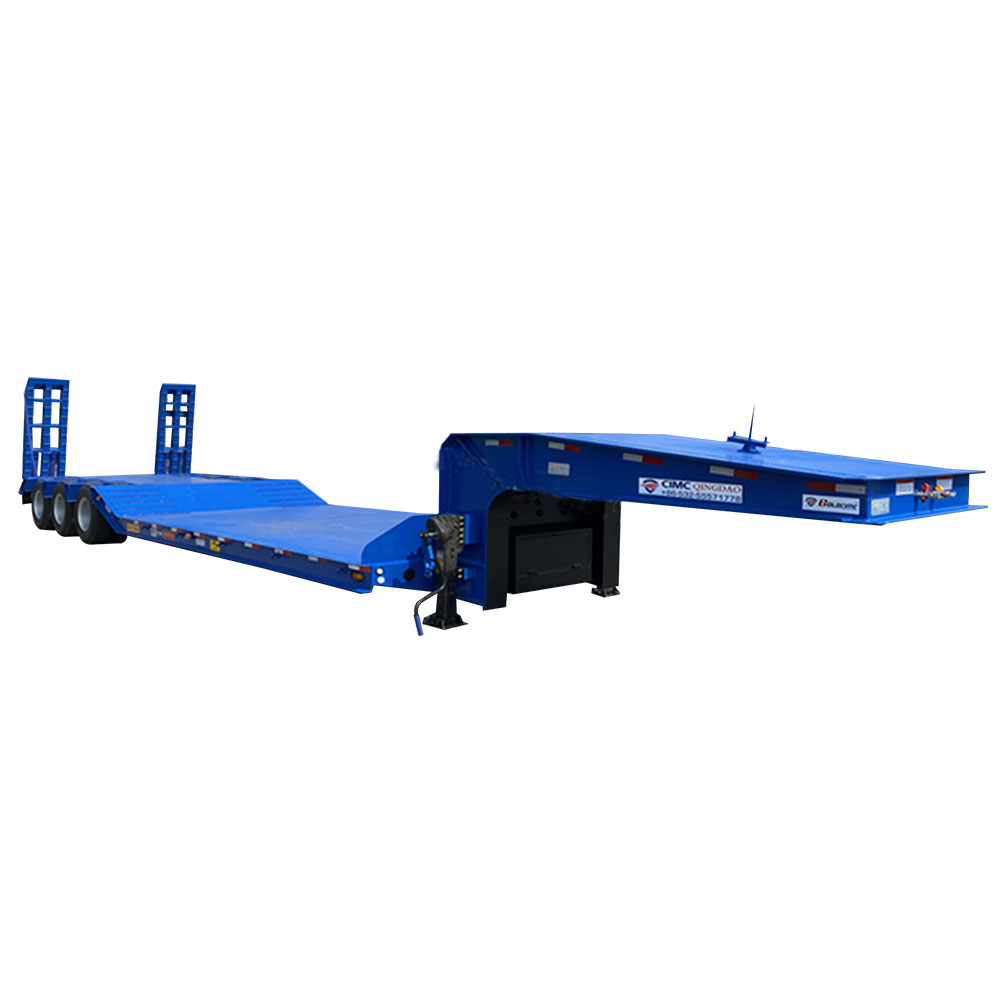

TRI-AXLE Lowbed Trailer

DIMENSION:Length X Width: 14,500 X 3,050
LENGTH OF LOADING PLATFORM (MM):Approximate 5,600mm
HEIGHT OF LOADING PLATFORM (MM):Approximate 650mm
KING PIN SETTING:500MM
FIFTH WHEEL HEIGHT (MM):The height will be adjusted according to the tractor specification
KING PIN SIZE:50mm / 90mm (Optional)
AXLE SPACE (MM):10,155 + 1,310 + 1,310
TARE WEIGHT (KG):Approximate 12,000
PAYLOAD (KG):60,000
GVWR (KG):82,000
TIRES:8.25 X 22.5
AXLE:3X (FUWA AXLE)
